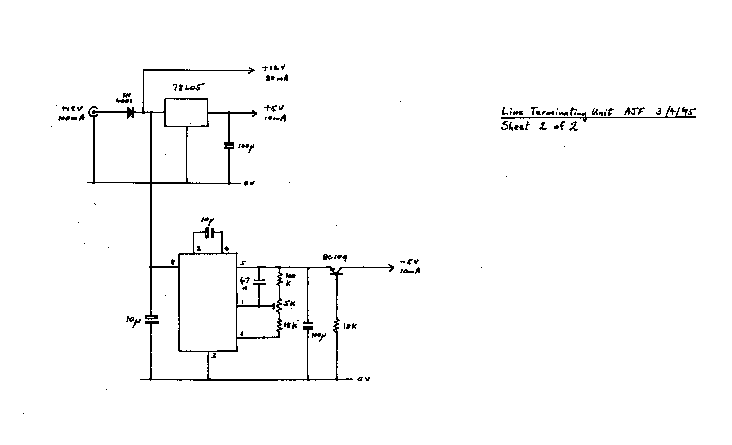

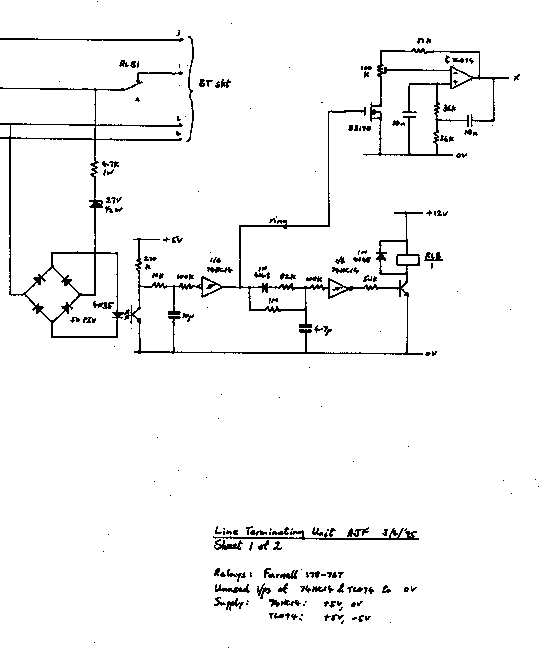

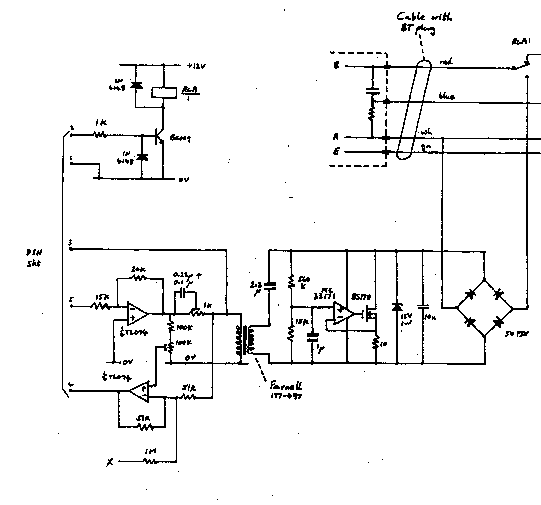

LTU circuit diagram

I know it's illegible - email me and I'll send you a paper copy by snail mail. please dont rip this site

PCB layouts are available on request.

Tony Fisher / fisher@minster.york.ac.uk
